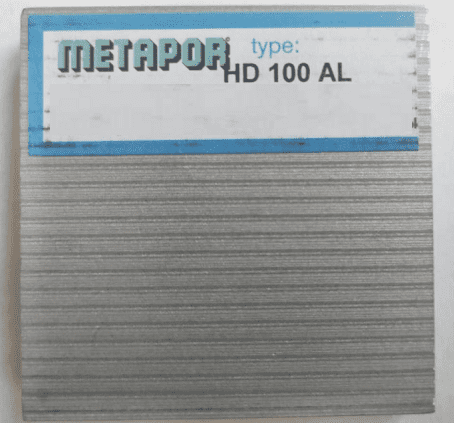

METAPOR HD 100 AL Air Permeable Aluminium
Selector Guide

Recommended for applications where the surface characteristics of the finished part are critical. Also recommended for use with acrylics and in twin-sheet applications.

Product description

METAPOR Air Permeable Composites


When appearance matters, choose Portec METAPOR.


When the look says it all, Portec METAPOR offers significant design flexibility on highly cosmetic or transparent parts without the unsightly look of drilled vacuum holes or surface imperfections. It also allows for the machining of intricate part detail to enhance appearance.


Property

Density:  1.9 g/cm3

Hardness Shore D: 81

Flexural Strength43.6 N/mm2

Flexural Modulus:9200 N/mm2

Impact strength:11kJ/m2

Coefficient of thermal expansion25 °C -125°C (77 – 257 °F):36 x 10-6 mm/mm/°C

Thermal conductivity at 100°C (212 °F):  20.5 W / m-°C

Martens Dimensional Stability108°C

Mean pore diameter 12 µm

Total porosity (by volume) 16%


METAPOR HD 100 AL Standard size chart

NO.

Length X Width X Thickness ,MM

1

500 x 500 x 10

2

500 x 500 x 15

3

500 x 500 x 20

4

500 x 500 x 25

5

500 x 500 x 30

6

500 x 500 x 35

7

500 x 500 x 40

8

500 x 500 x 50

9

500 x 500 x 60

10

500 x 500 x 70

11

500 x 500 x 80

12

500 x 500 x 90

13

500 x 500 x 100

14

500 x 500 x 400

METAPOR HD 100 AL

1

1000 x 500 x 10

2

1000 x 500 x 15

3

1000 x 500 x 20

4

1000 x 500 x 25

5

1000 x 500 x 30

6

1000 x 500 x 35

7

1000 x 500 x 40

8

1000 x 500 x 50

9

1000 x 500 x 60

10

1000 x 500 x 70

11

1000 x 500 x 80

12

1000 x 500 x 90

13

1000 x 500 x 100

14

1000 x 500 x 400
