Used with PS, ABS, PVC, PET and PE. Also suitable for processing higher temperature polymers such as PC or Acrylic. Its upper operating temperature limit is 410 degrees F (210 degrees C).
METAPOR Air Permeable Composites
When appearance matters, choose Portec METAPOR.
When the look says it all, Portec METAPOR offers significant design flexibility on highly cosmetic or transparent parts without the unsightly look of drilled vacuum holes or surface imperfections. It also allows for the machining of intricate part detail to enhance appearance.
Property:
Density: 1.9 g/cm3
Hardness Shore D: 82
Flexural Strength:43 N/mm2
Flexural Modulus:10800 N/mm2
Impact strength:11kJ/m2
Coefficient of thermal expansion25 °C -125°C (77 – 257 °F):32 x 10-6 mm/mm/°C
Thermal conductivity at 100°C (212 °F): 19 W / m-°C
Martens Dimensional Stability:210°C
Mean pore diameter :12 µm
Total porosity (by volume) :16%
二,METAPOR HD 210 AL Standard size chart
NO.
Length X Width X Thickness ,MM
1
500 x 500 x 10
2
500 x 500 x 15
3
500 x 500 x 20
4
500 x 500 x 25
5
500 x 500 x 30
6
500 x 500 x 35
7
500 x 500 x 40
8
500 x 500 x 50
9
500 x 500 x 60
10
500 x 500 x 70
11
500 x 500 x 80
12
500 x 500 x 90
13
500 x 500 x 100
14
500 x 500 x 400

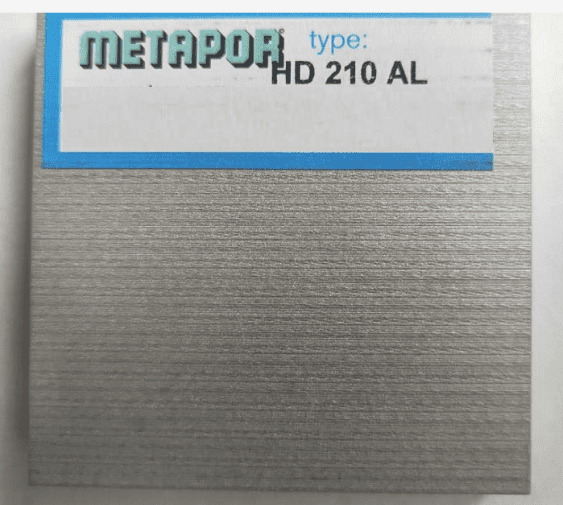

METAPOR HD 210 AL
1
1000 x 500 x 10
2
1000 x 500 x 15
3
1000 x 500 x 20
4
1000 x 500 x 25
5
1000 x 500 x 30
6
1000 x 500 x 35
7
1000 x 500 x 40
8
1000 x 500 x 50
9
1000 x 500 x 60
10
1000 x 500 x 70
11
1000 x 500 x 80
12
1000 x 500 x 90
13
1000 x 500 x 100
14
1000 x 500 x 400
