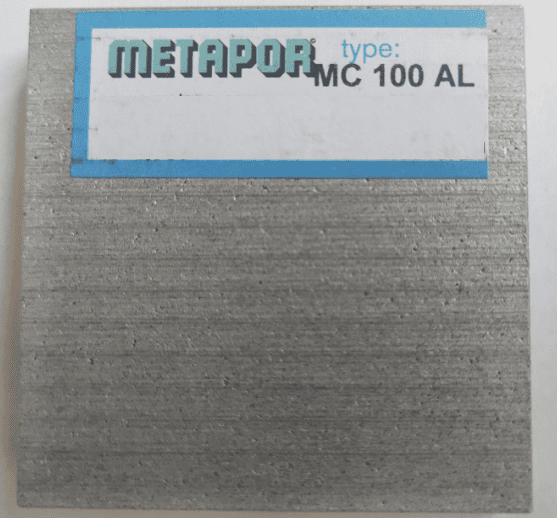

METAPOR MC 100 AL Air Permeable Aluminium
Selector Guide

New composite material made of inorganic granules and epoxy resin engineered to form a micro-porous structure for use as prototype vacuum form or thermoform tooling. It is a cost effective alternative to other permeable materials when considering short duration runs.

Product description

METAPOR Air Permeable Composites

When appearance matters, choose Portec METAPOR.

When the look says it all, Portec METAPOR offers significant design flexibility on highly cosmetic or transparent parts without the unsightly look of drilled vacuum holes or surface imperfections. It also allows for the machining of intricate part detail to enhance appearance.

Property

Density:  1.7 g/cm3

Hardness Shore D: 82

Flexural Strength: 28.5 Mpa

Flexural Modulus:14,498 Mpa

Impact strength:1.0kJ/m2

Coefficient of thermal expansion25 °C -125°C (77 – 257 °F)25-30 x 10-6 mm/mm/°C

Thermal conductivity at 100°C (212 °F):  1.6 W / m-°C

Martens Dimensional Stability100°C

Mean pore diameter 400 µm

Total porosity (by volume) 26%



,METAPOR MC 100 AL Standard size chart

NO.

Length X Width X Thickness ,MM

1

500 x 500 x 10

2

500 x 500 x 15

3

500 x 500 x 20

4

500 x 500 x 25

5

500 x 500 x 30

6

500 x 500 x 35

7

500 x 500 x 40

8

500 x 500 x 50

9

500 x 500 x 60

10

500 x 500 x 70

11

500 x 500 x 80

12

500 x 500 x 100

13

500 x 500 x 400
